biomass air heating system

Our Biomass Air Heaters are a great cost-effective method to heat your premises. Designed to burn pellets and waste biomass, the biomass hot air furnaces provide an adequate solution for agricultural and industrial premises, schools, nurseries and offices.

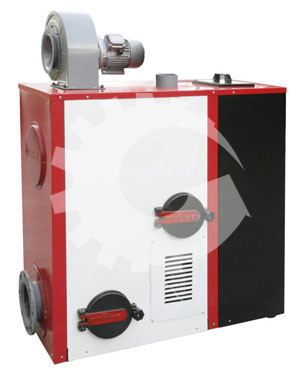

Biomass Hot Air Furnace

Description:
► Applicable for livestock and plant industries, factory workshops, schools, nurseries and offices Works by 60% fired and 40% gasified patent technology making the furnace temperature up to 1100—1350℃ instantly.
► The highly-purified hot air is formed through the exchange of high-temperature resistant heat exchanger.
► The interior is made of high temperature resistant stainless steel material.
► Energy-saving: fuel consumption is 50% less than steam or other heaters.

Main Technical Parameter:

Item			CLHS-0.048	CLHS-0.072	CLHS-0.12
Rated heating power	104kcal		4	6	10
Rated voltage	v	small hot blast stove series	380v	380v	380v
		Warm air conditioner series	220v
Circulating fan	kW	small hot blast stove series	0.75	0.75	0.75
		Warm air conditioner series	0.165
Fuel consumption	kg/h	small hot blast stove series	7.6	10.08	16.2
		Warm air conditioner series	7.6
Furnace body weight	kg	small hot blast stove series	270	300	400
		Warm air conditioner series	150
Silo dimension	mm	small hot blast stove series	500×340×785	500×340×785	690×430×885
		Warm air conditioner series	570×340×835
Furnace dimension	mm	small hot blast stove series	1200×600×1200	1200×600×1200	1300×600×1350
		Warm air conditioner series	1200×600×1200
Working pressure	Standard pressure
Thermal efficiency	91.15%
