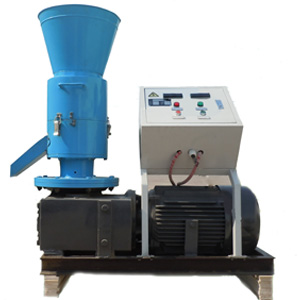

Rotating Roller Wood Pellet Mill
There are two flat die pellet mills available for your small pelletizing business. The first type, which includes rotating rollers and a stationary die, is GEMCO rotating roller pellet mill, whereas the second type combines a stationary roller with a rotating roller. The most conventional fixed die design with rotating roller can reduce wear and prolong the die service life up to 2000 hours compared to the above mentioned model and it will allow you to produce longer wood pellets - up to 3 cm in length.Watch how to install a wood pellet mill in the video below
The rotating roller wood pellet mill is the perfect solution for you to produce industrial biomass fuel by making pellets from a wide range of raw materials including sawdust, straw, chaff, bamboo shavings, peanut shells, bagasse and alfalfa.
Technical Features
Model: ZLSP300 R-Type
Capacity: 250-350 kg/h
Power: 22 kW
Dimensions: 1300*600*1400 mm; Weight: 575 kg
Final Pellet Diameter: 6-12 mm
Flat Die & Roller Material: alloyed steel
Flat Die & Roller Service Life: min 800 hours
Model: ZLSP400 R-Type
Capacity: 350-450 kg/h
Power: 30 kW
Dimensions: 1400*700*1600; Weight: 810kg
Final Pellet Diameter: 6-12 mm
Flat Die & Roller Material: alloyed steel
Flat Die & Roller Service Life: min 800 hours
For both models, the service life of their motor and gear box is 1 year, whereas the service life of their upper body and main shaft box is 5 years. For the rest of parts, their service life is 1 year.
Special Features:
1. Gears are made of high quality case-hardened nitrogen-alloyed steel which ensures durability and efficiency while reducing noise. Another advantage is that the mill weight/force bearing capacity is increased while temperature in the gear box is decreased.
2. The main shaft is designed to endure heavy loads and bear strong axial forces, and thus increasing durability.
3. The use of a large-diameter roller is key to increase pelletization rate as well as the uniformity and strength of the final pellets.
4. Wear-resistant rollers and double-sided dies guarantee their long lasting performance and extended service life.
5. All bearings are sealed to prevent dust accumulation.
6. You can choose different diameters for your final pellets between 6-12mm.

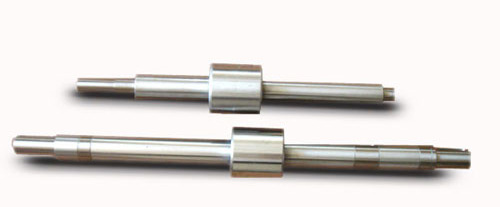

Our machines use high quality stainless steel spindles which ensure higher efficiency and longer service life
