Diesel Pellet Mill

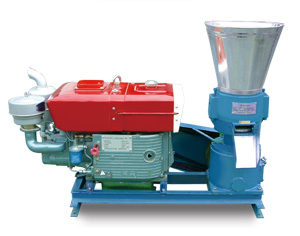

As a result of the fast development of fuel biomass pelletizing systems, the pellet industry market provides several types of pellet making machines. The GEMCO Diesel Pellet Mill has been developed thanks to the extraordinary dedication and work commitment of our professional team of engineers. As its name indicates, the diesel pelletizer is a diesel powered machine for the production of biomass pellets.

The ZLSP- A Series Diesel Wood Pellet Mills adopt the same working principles of the flat die pellet press. When operating, the die keeps rotating whereas the rollers do not rotate, Raw materials are fed from the hopper into the space between the rollers and the die, then compressed and pushed through the die holes. After being converted into a cylindrical, granular form, the material is cut to uniform size and discharged through a chute.

Main Technical Features

MODEL: ZLSP 200A Wood Pellet Press with Diesel Engine
CAPACITY: 80-120KG/H
POWER: 15HP
WEIGHT: 210KG / 240KG
PACKING DIMENSIONS: 1000*460*900MM

MODEL: ZLSP230A Wood Pellet Press with Diesel Engine
CAPACITY: 150-300KG/H
POWER: 22HP
WEIGHT: 280KG / 310KG
PACKING DIMENSION: 1180*560*1020MM

Other main features

• Functional design with simple and compact structure; space saving and low noise
• Easy to operate and reduce energy consumption
• Able to produce high output of strong, smooth pellets
• High pelletization rates
• Able to process different raw materials and pellet sizes

The flat die pellet press is the most popular and used by small pellet manufacturers all over the world. Among them, the diesel pellet press is one of their top choices due to its flexibility and adaptability to different working conditions.
